FFU Fan Filter Unit
>

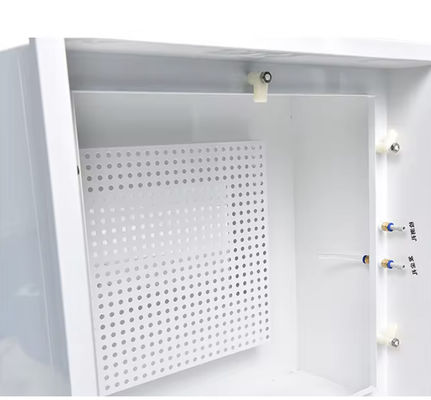

Modular Design Painted Steel Terminal Box With HEPA Filter For Clean Room

Modular Design Painted Steel Terminal Box With HEPA Filter For Clean Room

Product Details:
Place of Origin: Guangdong, China
Brand Name: HUAAO
Certification: CE; ISO
Model Number: HE561
Detail Information
Place of Origin:
Guangdong, China
Brand Name:
HUAAO
Certification:
CE; ISO
Model Number:
HE561
Product Name:
FFU Air Filter Unit
Size:
Standard/ Customized
Material:
Stainless Steel, Galvanized Plate, Alum.
Air Flow:
500-2000
Device Size:
1175*575*330
Controller:
DC(direct Current)Group Control
Highlight:

High Light

Highlight:

cleanroom terminal box with hepa filter

,

modular design hepa terminal box

Trading Information
Minimum Order Quantity:
1
Price:
US$161-213/set
Packaging Details:
wrapped with plastic film, then pack into master carton, finally wooden case or as per request
Delivery Time:
15-30 days
Payment Terms:
L/C, T/T, D/A, D/P, Prepay 30% and pay 70% before delivery.
Supply Ability:
300 sets per day
Product Description

Painted Steel Terminal Box with HEPA Filter: Modular Design for Enhanced Clean Room Air Quality



Description:



FFU is a simple purfcationeouipmentcomposed ofa fan and ahigh-eliciency fter.The fan fitration unitis curenly one ofthe quiet and cost-efective unils in the cleanmarket. By using this type of unit, high-qualty air can be transpored to the clean room.



Moreover, the alr manlfold is good making it sultabie for manulacwrers olsemiconduclors,eleclronics, lat panel disphays,and disk drives, as wellas for induslries such as oplics and biclechnology. It's used in clemn rooms, clean workbenchescean produclion lines, assembled cleanrooms,and localleve! 100 envlronments, as wel as other piaces with stict conirol requlements for air polluion with low energconsumption and reduced oporating costs.





Parameters:



  AC FFU
Product Code HA-FFU-A05 HA-FFU-A10 HA-FFU-A15 HA-FFU-A20
Cabinet size 575X575X220 575x1175x220 875x1175x275 1175x1175x295
Filter size 570x570x69 570x1170x69 870x1170x69 1170x1170x69
Air volume 500CMH 1000CMH 1500CMH 2000CMH
Noise 52-62dB(A) 52-62dB(A) 52-62dB(A) 52-62dB(A)
Full pressure 210PA 210PA 230PA 230PA
Power 170W 170W 200W 240W
Weight 28Kg 35Kg 47Kg 55Kg
Material Galvalume plate;Mainless sleel plate;aluminum plase.steel plate paint;aluminum
Power supply AC single phase 110V1220V,50Hz/6OHz;
Control systerm Three-gear speed regulntson,three-speed group control speed regulation
Filtration efficiency 99.95*MPPS or above (H13-U16@EN1822)
Primary filter G3VG4 filler coHon:nylon fher:G3VG4 filter
Working status power indicator switche running indicator light:fauit indication lamp
Wiring Pinyuwei;avintion male and lomale plug terminal hleck
Overload protection Dual overload protection switeh for motor and controllar
Monitoring contacts Rosorvod cporation and fault dry contacts

  EC FFU
Product Code HA-FFU-E05 HA-FFU-E10 HA-FFU-E15 HA-FFU-E20
Cabinet size 575X575X275 575x1175x275 875x1175x305 1175×1175x305
Filter size 570x570x69 570x1170x69 870x1170x69 1170x1170x69
Air volume 500CMH 1000CMH 1500CMH 2000CMH
Noise 48-54dB(A) 48-54dB(A) 52-58dB(A) 52-58dB(A)
Full pressure 210PA 210PA 280PA 280PA
Power 60W 90W 140W 160W
Weight 28Kg 35Kg 47Kg 55Kg
Material Galvalume plate;stainiess steel plate;aluminum piate steei piate paint;aluminum plale paint
Power supply AC single-phase 110W220V,50Hz100HZ
Control systerm Manual stepless speed regulation;PC group cantrol speed regulation (0-1400r/min)
Filtration efficiency 99.95%MPPS or above (H13-U16@EN1822)
Primary filter G3/G4 filter cotton;nylon filter;G3/G4 flter
Working status Running indicator light:Fault indicator
Wiring internationnl torminal block quick connoctor
Overload protection Dual overload protection switch for motor and controller
Monitoring contacts RS-485Communication protocol





Product advantage:

  • structure, and beautiful appearance.
  • Long lifespan, low noise, maintenance free, low vibration, and can be used in multiplecombinations.
  • Built in air duct guidance system to reduce noise and improve fan efficiency.
  • Suitable for assembling into uitra clean production lines, equipped with high-efficiency filtersfor easy replacement.​





Applications:



It's used in clemn rooms, clean workbenchescean produclion lines, assembled cleanrooms,and localleve! 100 envlronments, as wel as other piaces with stict conirol requlements for air polluion with low energconsumption and reduced oporating costs.





Workshop Photos:



Modular Design Painted Steel Terminal Box With HEPA Filter For Clean Room 0





Our Company:



Modular Design Painted Steel Terminal Box With HEPA Filter For Clean Room 1





Our Exhibition:



Modular Design Painted Steel Terminal Box With HEPA Filter For Clean Room 2





FAQS:



1. Who are we?
We are based in Guangdong, China, start from 2013,sell to Southeast Asia(55.00%),Africa(20.00%),Eastern Europe(10.00%),North America(5.00%),Oceania(5.00%),Mid East(5.00%). There are total about 800 people in our office.

2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.What can you buy from us?
Cleanroom Equipment, Cleanroom Sandwich Panel,Aluminum Profile, Cleanroom Door and Window,PVC Flooring.

4. Why should you buy from us not from other suppliers?
annul output 1 billion SQM 6 Factories in china , area exceeds 250,000 square meters 800 experienced employees employees 60 patent certificates Countless National Awards Project: Foxconn, Livzon Pharmaceutical, CATL, COCA-COLA

5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,DAF,DES;
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese,German...
