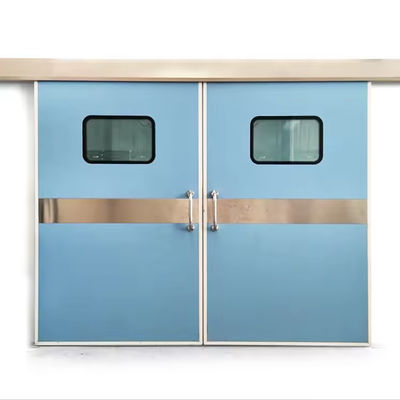

Automatic sensor slide door
Description:
Parameters:
| NO. | Material name | Specifications | quantity | Remark |
| 1 | door frame | Aluminum alloy | Customized | |
| 2 | door panel |
Thickness:40 mm Painted galvanized sheet thickness:0.8mm /304 stainless steel |
||
| 3 | Anti-collision belt |
Thickness:0.8mm 304 fingerprint resistant stainless steel |
||
| 4 | Core Material | paper honeycomb/Aluminum honeycomb | ||
| 5 | Window |
600*400mm Double glazed tempered glass |
1 set | |
| 6 | Door panel frame | Aluminum alloy | Green white,customized | |
| 7 | Door Color | customized | ||
| 8 | Door size | 1100*2200 | Size can be customized | |
| 9 | Subframe | Galvanized sheet spraying | Same color as door panel | |
| 10 | dynamic beam | Aluminum alloy guide rail set | 1 piece | |
| 11 | External stainless steel handle | Hole spacing 500mm | 1 piece | |
| 12 |
Internal stainless steel concealed handle |
120*40*20mm | 1 piece | |
| 13 | Suspension wheel | 150*60*36mm | 2 piece | |
| 14 | earth wheel | Φ26*70L | 1 piece | |
| 15 | Imported door operator system | Kitas 100W motor | 1 set | Door opening delay: 1-30s |
| 16 | safety light | Anti-pinch | 1 set |
No need for a emergency button |
| 17 | Foot Sensor | Indoor and outdoor pedals | 1 set | |
| 18 | Click switch |
86*86mm Indoor touch switch |
1piece |
Product advantage:
Main components such as door frames, guide rails, and door panel frames are made of high-quality aluminum alloy, with stable structure and beautiful appearance.
The long stainless steel handle on the front of the door panel is beautiful and practical.
Stainless steel window is attached inside the arc.
Hidden ground wheel, sturdy and beautiful.
D-shaped rubber strips on the door leaf, C-shaped rubber strips on the door frame, and double complementary rubber strips on the door panels and door frames have good air tightness
(reaching the highest level 8), ensuring the relative cleanliness of the indoor area.
Using imported motor set Kitais motor (a brand of Panasonic), the door body runs smoothly and quietly, and the failure rate is low.
Opening methods such as microwave induction, hand feel, face recognition, fingerprint, and password can be used according to different locations.
The door opens and closes quickly and silently, improving the efficiency of passing people and objects.
Safe and reliable, it is equipped with an anti-pinch light to avoid accidentally pinching people during the closing process. The pendant is equipped with an anti-detachment device to preventthe door panel from accidentally derailing.
Applications:
Widely used in Hospitals, laboratories, pharmaceutical factories, electronics factories, new energy, aerospace, food factories, beverage factories, cosmetics and other purification fields.
Notices:

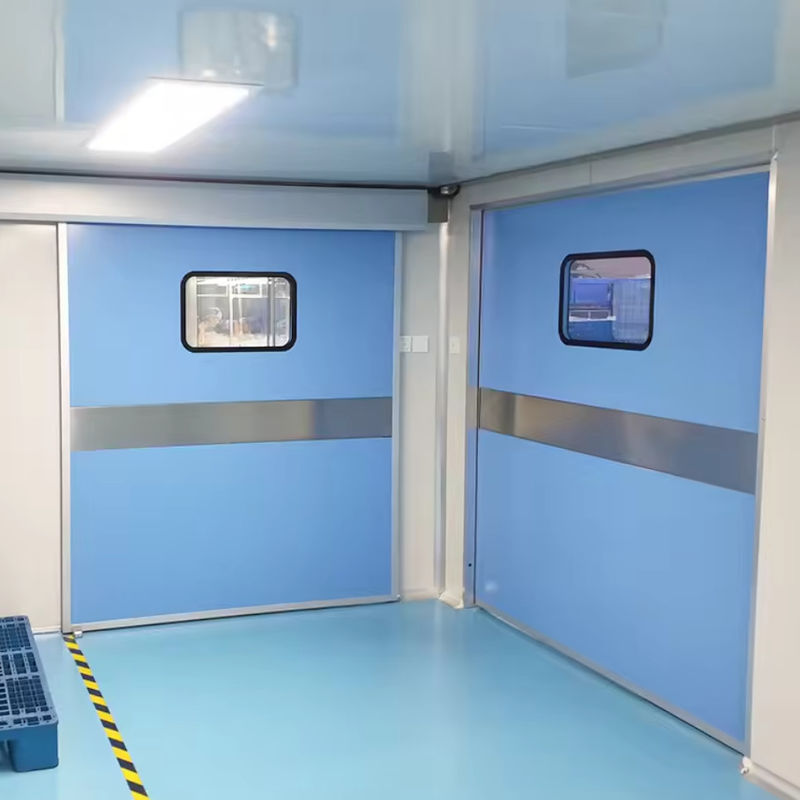

Projcet Photos:
Our Clients:
FAQS:
Q1. Can I have a sample order ?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: 3 days for Sample preparing ,8-10 working days for mass production.
Q3. Do you have any MOQ limit for the order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 7-15 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order?
A: Firstly let us know your detail requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the quotaion and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production.
