Machine Made Cleanroom Sandwich Panel
>
50mm 75mm 100mm Eps Sandwich Panel A2 Fire Rating Thermal Insulation

50mm 75mm 100mm Eps Sandwich Panel A2 Fire Rating Thermal Insulation

Product Details:
Model Number: HE007
Detail Information
Model Number:
HE007
Panel Sheet Material:
Galvanized Steel
Product Name:
EPS Sandwich Panel
Type:
Machine-made Panel
Panel Sheet Thickness:
0.376-0.526mm
Panel Thickness:
50mm,75mm,100mm
Width:
950mm,1150mm
Length:
Customized
Core Material:
EPS
Color:
Customized
Characteristic:
Light Weight, Fast Installation,Thermal Insulation
Highlight:

High Light

Highlight:

eps sandwich panel a2 fire rating

,

thermal insulation eps sandwich panel

,

thermal insulation sandwich panel eps 50mm

Trading Information
Minimum Order Quantity:
100㎡
Price:
US$6.55-7.55/㎡
Stock:
Out of Stock
Description:
50-100 mm Fireproof A2 Board Thermal Insulation Eps Sandwich Panel Machine Made Cleanroom Sandwich Panel
Payment Terms:
L/C, T/T, D/A, D/P
Product Description

HUAAO Fireproof EPS Sandwich Panel Machine Made Cleanroom Sandwich Panel for Cold Rooms



Description:

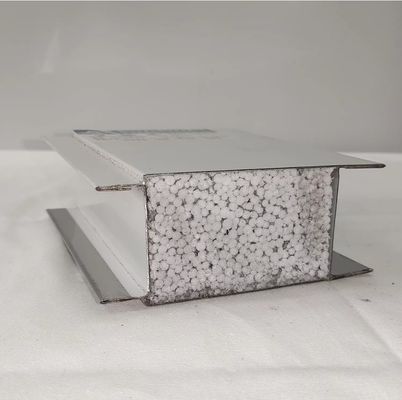

An EPS sandwich panel typically consists of three main components:

The core of the panel is made of expanded polystyrene (EPS) foam. This foam provides excellent insulation properties, helping to regulate temperature and reduce energy consumption.

The outer layers of the panel are usually composed of metal sheets, such as steel or aluminum, or other rigid materials like fiber-reinforced plastic (FRP). These outer layers offer protection and structural stability to the panel.

The overall construction of the EPS sandwich panel results in a lightweight yet sturdy material. It is often rectangular in shape and available in various thicknesses and sizes to meet different construction requirements.

The surface of the panel may have a smooth finish or be coated with a protective layer to enhance durability and resistance to weathering, corrosion, and damage.

EPS sandwich panels are commonly used in buildings for roofing, wall cladding, partitions, and cold storage facilities due to their insulation capabilities, ease of installation, and cost-effectiveness.





Parameter:



Type Mechanism panel Width(mm) 1150mm
Model HE007 Length (as customized) Customized
Name EPS clean room sandwich panel Weight (kg/㎡) Baosteel;Lantian
Panel thickness customization 50mm;75mm;100mm Steel plate brand customization

0.376;0.426;0.476;0.526

Stainless Steel:0.5

Core material EPS Structure splicing of mouthpiece
Core material density customization(Kg/m³) 12-20 Color customization Customized





Product advantages:

  1. Fire rating:A2
  2. light weight, fast installation,Thermal insulation
  3. Supply ability:40000㎡
  4. Scale of company: 800 employees,6 factories,1billion sale.
  5. Good fire resistance: When treated properly, they can meet certain fire safety standards.
  6. Sound insulation: Helps to reduce noise transmission.

  7. Weather resistance: Can withstand various weather conditions without significant deterioration.

  8. Durability: Have a long service life with proper maintenance.

  9. Versatile: Can be used in a wide range of applications such as walls, roofs, and partitions.



Applications:



Widely used in Hospitals, laboratories, pharmaceutical factories, electronics factories, new energy, aerospace, food factories, beverage factories, cosmetics,coldroom and other purification fields.





Notices:



It can be used as wall panel and ceiling panel.When it’s used as ceiling panel,it’s not walkable.

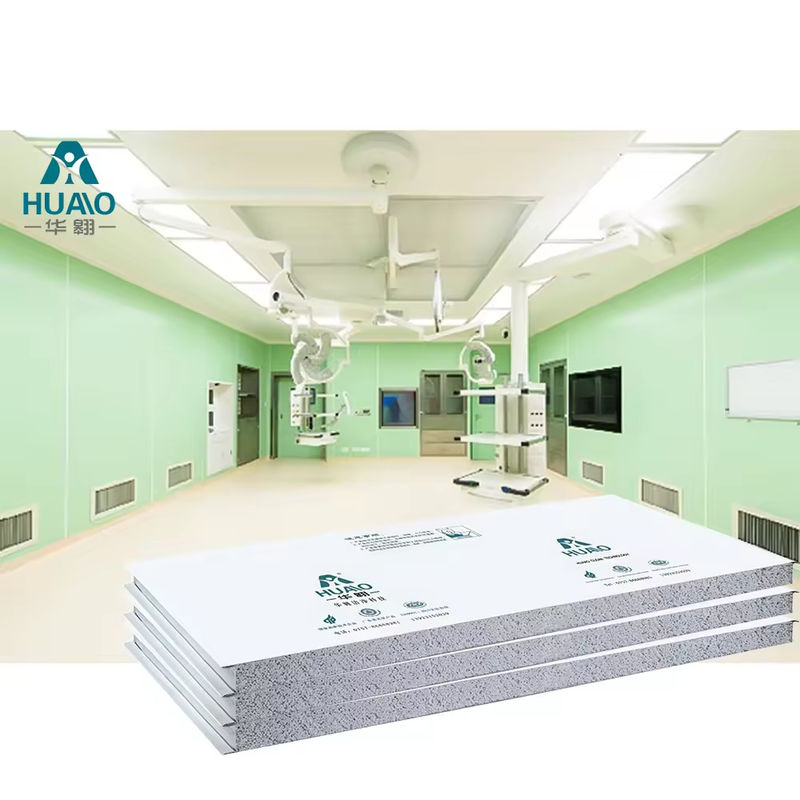

Projcet Photos:



50mm 75mm 100mm Eps Sandwich Panel A2 Fire Rating Thermal Insulation 0





Company Photos:



50mm 75mm 100mm Eps Sandwich Panel A2 Fire Rating Thermal Insulation 1





FAQS:



Q: How about your core competitiveness?

A: Our raw material suppliers are Fortune 500 companies, and we have 800 employees. Whether it is technical support or after-sales service, we can give you a satisfactory attitude. 5 factories nearby produce and ship nearby

We have the first automatic production line in the world. Compared with the traditional manual production line, the production efficiency increased by 6-8 times, leading to most competitors. That means lower cost and higher quality.





Q: Do you have your own construction team?

A: No, but all of our cleanroom panels and connected parts are easy for disassemble and installation due to our excellent design.

What's more, we provided the instruction and videos for installation and we can send our professional supervisor to the site.





Q: How many kinds of products do you have?

A: At present, we have more than 100 different products, including a cleanroom sandwich panel  cleanroom door and window,aluminum profile,PVC flooring and cleanroom equipments.





Q: Can you provide samples? Is it free or extra?

A: Yes, we can provide samples for free, but we would appreciate it if freight to collect.





Q: What are your terms of payment?

A: 30% T/T prepaid, 70% T/T before delivery. We can discuss payment if we have more cooperation in the future.
