Brand Name: | HUAAO |
Model Number: | HE009 |
MOQ: | 100㎡ |
Price: | US$8.15-10.77/㎡ |
Packaging Details: | 1. Foam protection 2. Wooden frame support 3. Forklift loading and unloading 4. Container loading |
Payment Terms: | L/C, T/T, D/A, D/P, T/T |

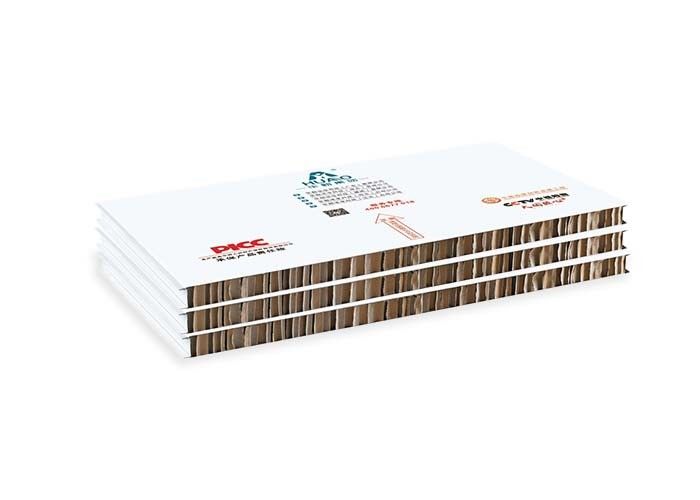

Flame retardant Paper honeycomb wall panel Machine Made Cleanroom Sandwich Panel for factory
Description:
A paper honeycomb cleanroom sandwich panel is a construction material specifically designed for use in cleanroom environments.
It is composed of a paper honeycomb core sandwiched between two outer layers. The paper honeycomb core is a structure made up of hexagonal cells, which provides rigidity and strength while keeping the weight relatively low.
The outer layers are usually made of materials that are suitable for cleanroom applications. These could be materials like metal sheets (such as stainless steel or aluminum), or specialized plastic or composite laminates. These outer layers are selected for their properties such as smoothness, resistance to chemicals, low particle generation, and ease of cleaning.
The combination of the paper honeycomb core and the outer layers results in a panel that offers structural stability, insulation, and the ability to maintain a clean and controlled environment, which are all essential requirements for cleanrooms in various industries like electronics, pharmaceuticals, and healthcare.
Type | Mechanism panel | Width(mm) | 950mm,1150mm |
Model | HE009 | Length (as customized) | Customized |
Name | Paper honeycomb clean room sandwich panel | Steel plate brand customization | Baosteel;Lantian |
Panel sheet material | steel | Panel type selection | Stainless Steel;Galvanized steel |
Panel thickness customization | 50mm;75mm;100mm | Customized thickness of steel plate (mm) |
0.376;0.426;0.476;0.526 Stainless Steel:0.5 |
Core material | Paper honeycomb | Structure | splicing of mouthpiece |
Characteristic |
light weight,fast installation,heat insulation.sound insulation. |
Color customization | off-white/blue/green |
Product advantages:
1. Lightweight: This makes installation and handling easier, reducing the overall load on the building structure.
2. Good Strength-to-Weight Ratio: Despite being lightweight, the honeycomb structure provides adequate strength and stability.
3. Excellent Thermal Insulation: Helps maintain a consistent temperature within the cleanroom, reducing energy consumption for heating or cooling.
4. Sound Absorption: Can contribute to a quieter working environment within the cleanroom.
5. Low Dust Generation: Minimizes the release of particles, which is critical for maintaining the cleanliness and purity of the cleanroom.
6. Eco-Friendly: Paper is a recyclable material, making it a more environmentally sustainable option.
7. Cost-Effective: Compared to some other materials, it can offer a cost-efficient solution without compromising on performance.
8. Customizable: Can be tailored to specific size and shape requirements to fit the cleanroom design.
Applications:
Widely used in Hospitals, laboratories, pharmaceutical factories, electronics factories, new energy, aerospace, food factories, beverage factories, cosmetics and other purification fields.
Notices:
It can be used as wall panel and ceiling panel.When it’s used as ceiling panel,it’s not walkable.

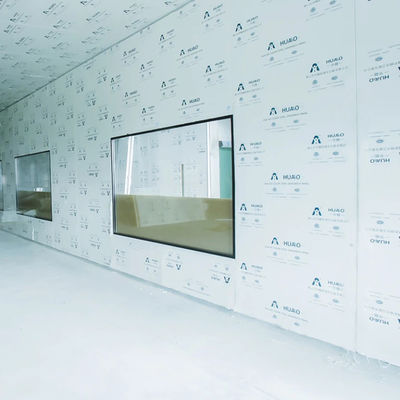

Projcet Photos:
Company Photos:
FAQS:
Q: How about your core competitiveness?
A: Our raw material suppliers are Fortune 500 companies, and we have 800 employees. Whether it is technical support or after-sales service, we can give you a satisfactory attitude. 5 factories nearby produce and ship nearby
We have the first automatic production line in the world. Compared with the traditional manual production line, the production efficiency increased by 6-8 times, leading to most competitors. That means lower cost and higher quality.
Q: Do you have your own construction team?
A: No, but all of our cleanroom panels and connected parts are easy for disassemble and installation due to our excellent design.
What's more, we provided the instruction and videos for installation and we can send our professional supervisor to the site.
Q: How many kinds of products do you have?
A: At present, we have more than 100 different products, including a cleanroom sandwich panel cleanroom door and window,aluminum profile,PVC flooring and cleanroom equipments.
Q: Can you provide samples? Is it free or extra?
A: Yes, we can provide samples for free, but we would appreciate it if freight to collect.
Q: What are your terms of payment?
A: 30% T/T prepaid, 70% T/T before delivery. We can discuss payment if we have more cooperation in the future.
![]() |
