Machine Made Cleanroom Sandwich Panel
>
Thermal Insulation Machine Made Cleanroom Sandwich Panels Rock Wooll 50mm 75mm 100mm

Thermal Insulation Machine Made Cleanroom Sandwich Panels Rock Wooll 50mm 75mm 100mm

Product Details:
Model Number: HE005
Detail Information
Model Number:
HE005
Panel Sheet Material:
Galvanized Steel
Product Name:
Rock Wool Sandwich Panel
Type:
Machine-made Panel
Panel Sheet Thickness:
0.376; 0.426; 0.476; 0.526mm
Panel Thickness:
50mm,75mm,100mm
Width:
950mm,1150mm
Length:
Customized
Core Material:
Rock Wool
Core Material Density:
60-120Kg/m³
Color:
Off-white,blue,green,pink
Highlight:

High Light

Highlight:

100mm thickness sandwich wall panel

,

75mm machine made cleanroom sandwich panel

,

machine made sandwich wall panel

Trading Information
Minimum Order Quantity:
100㎡
Price:
US$8-9.2/㎡
Stock:
Out of Stock
Description:
Thermal Sound insulation Machine Made Cleanroom sandwich panels rock wooll 50mm 75mm 100mm rockwool sandwich panel
Payment Terms:
L/C, T/T, D/A, D/P
Product Description

Thermal Sound insulation Machine Made Cleanroom sandwich panels rock wooll 50mm 75mm 100mm rockwool sandwich panel



Description:



A rock wool sandwich panel is a composite building material with several notable characteristics.

It typically consists of two outer metal sheets, often made of steel or aluminum, with a core of rock wool insulation in between. The rock wool core is known for its excellent thermal insulation properties, helping to regulate the temperature within a building and reducing energy consumption for heating or cooling.

In terms of fire resistance, rock wool offers a high level of protection as it is non-combustible and can prevent the spread of fire. This makes the sandwich panel suitable for applications where fire safety is a priority.

The panel is relatively lightweight, which simplifies transportation and installation processes. It also provides good sound insulation, reducing noise transmission between different areas.

The outer metal skins give the panel strength and durability, protecting the insulation core from damage and making it resistant to weather conditions, moisture, and corrosion.

Rock wool sandwich panels are available in various thicknesses and colors to meet different aesthetic and functional requirements. They are commonly used in the construction of industrial buildings, warehouses, cold storage facilities, and commercial structures for their insulation, fire protection, and structural performance.





Parameter:



Type Mechanism panel Width(mm) 1150mm
Model HE006 Length (as customized) Customized
Name Rock wool clean room sandwich panel Weight (kg/㎡) 10--14
Panel sheet material steel Panel type selection Stainless Steel;Galvanized steel
Panel thickness customization 50mm;75mm;100mm Customized thickness of steel plate (mm)

0.376;0.426;0.476;0.526

Stainless Steel:0.5

Core material Rock wool  Steel plate brand customization Baosteel;Lantian
Core material density customization(Kg/m³) 60-140 Color customization Pink/green/blue/white
Fire rating 60 minute Characteristic Sound insulation, fire protection





Product advantages:

  1. Fire rating:60 minute
  2. Sound insulation:IS0717/82 8 UNI18270/7Standards,especially in environments with high requirementsfor sound insulation.
  3. Steel plate:Well-known big brand(Baosteel;Lantian)
  4. Core material,glue:The manufacturer is a listed group with good quality
  5. Supply ability:40000㎡
  6. Scale of company: 800 employees,6 factories,1billion sale.
  7. Excellent thermal insulation,Fire resistance,Sound insulation,Durability,Lightweight,Versatility.Hygienic.





Applications:



Widely used in Hospitals, laboratories, pharmaceutical factories, electronics factories, new energy, aerospace, food factories, beverage factories, cosmetics and other purification fields.





Notices:



It can be used as wall panel and ceiling panel.When it’s used as ceiling panel,it’s not walkable.





Projcet Photos:

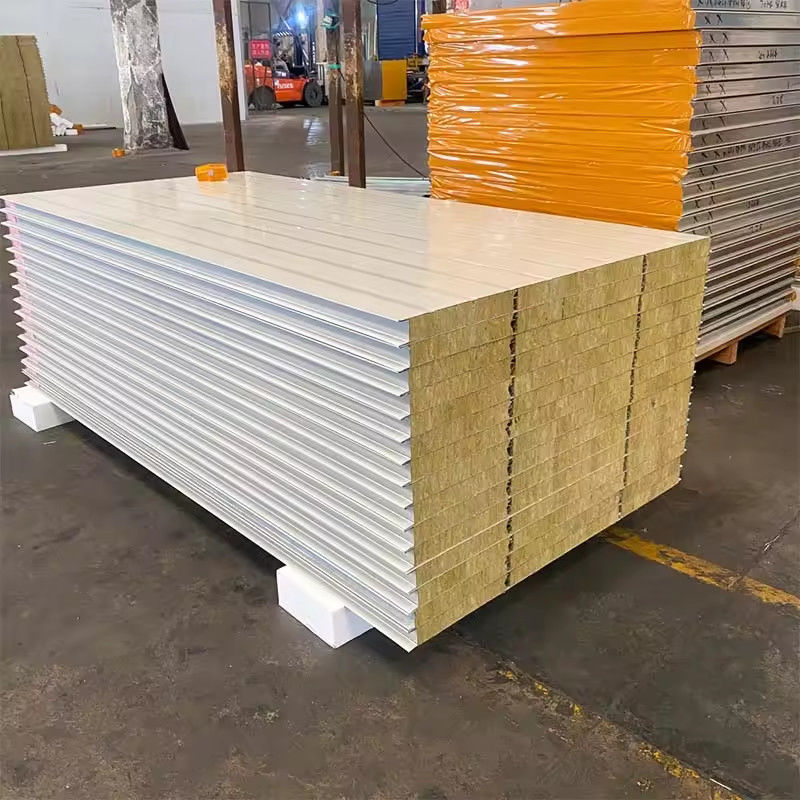

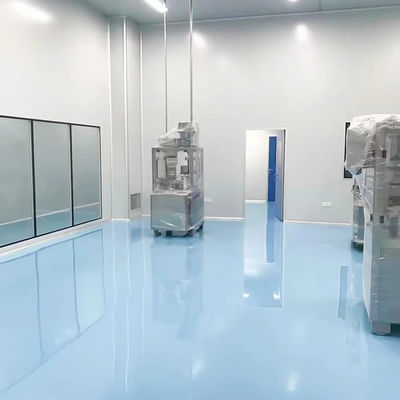

Thermal Insulation Machine Made Cleanroom Sandwich Panels Rock Wooll 50mm 75mm 100mm 0





Company Photos:

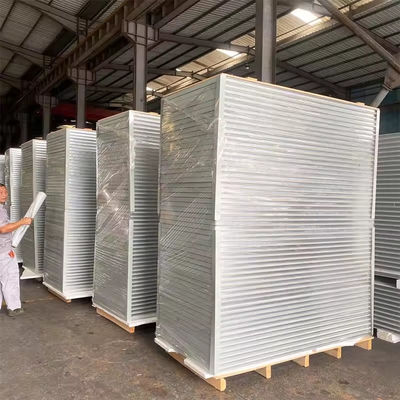

Thermal Insulation Machine Made Cleanroom Sandwich Panels Rock Wooll 50mm 75mm 100mm 1





FAQS:



Q: How about your core competitiveness?

A: Our raw material suppliers are Fortune 500 companies, and we have 800 employees. Whether it is technical support or after-sales service, we can give you a satisfactory attitude. 5 factories nearby produce and ship nearby

We have the first automatic production line in the world. Compared with the traditional manual production line, the production efficiency increased by 6-8 times, leading to most competitors. That means lower cost and higher quality.





Q: Do you have your own construction team?

A: No, but all of our cleanroom panels and connected parts are easy for disassemble and installation due to our excellent design.

What's more, we provided the instruction and videos for installation and we can send our professional supervisor to the site.





Q: How many kinds of products do you have?

A: At present, we have more than 100 different products, including a cleanroom sandwich panel  cleanroom door and window,aluminum profile,PVC flooring and cleanroom equipments.





Q: Can you provide samples? Is it free or extra?

A: Yes, we can provide samples for free, but we would appreciate it if freight to collect.





Q: What are your terms of payment?

A: 30% T/T prepaid, 70% T/T before delivery. We can discuss payment if we have more cooperation in the future.
