Product Details
Place of Origin: FOSHAN GUANGDONG CHINA
Brand Name: HUAAO
Certification: CE/ISO
Model Number: HE201
Payment & Shipping Terms
Minimum Order Quantity: 5
Price: US$64.7-73.03/㎡
Packaging Details: 1. Foam protection 2. Wooden frame support 3. Forklift loading and unloading 4. Container loading
Delivery Time: 7-15 Days
Payment Terms: L/C, T/T, D/A, D/P, T/T
Supply Ability: 4000 square meter/day
Product Name: |
Manul Cleanroom Steel Door |
Type: |
Manul Single Door |
Door Panel Sheet Materialhickness: |
Galvanized Steel |
Door Frame Steel Plate Thickness: |
1.2mm;1.5mm |
Door Panel Steel Plate Thickness: |
0.8mm; 1.0mm |
Filling Material: |
High Strength Paper Honeycomb/Aluminium Honeycomb |
Door Panel Thickness: |
50mm |
Wall Thickness: |
50mm-400mm |
Color: |
Customized |
Window Size: |
400*600mm |
Size (as Customized): |
Max:1200*2800mm |
Characteristic: |
Sound Insulation，Good Air Tightness，fireproofing |
Product Name: |
Emergency Exit Double Door |
Type: |
Cleanroom Swing Door |
Door Frame Steel Plate Thickness: |
1.2 Or 1.5mm |
Door Panel Steel Plate Thickness: |
0.8 Or 1.0mm |
Filling Material: |
Paper Honeycomb Or Aluminium Honeycomb |
Window Size: |
540*1810mm |
Size: |
Customized |
Product Name: |
Manul Cleanroom Steel Door |
Type: |
Manul Single Door |
Door Panel Sheet Materialhickness: |
Galvanized Steel |
Door Frame Steel Plate Thickness: |
1.2mm;1.5mm |
Door Panel Steel Plate Thickness: |
0.8mm; 1.0mm |
Filling Material: |
High Strength Paper Honeycomb/Aluminium Honeycomb |
Door Panel Thickness: |
50mm |
Wall Thickness: |
50mm-400mm |
Color: |
Customized |
Window Size: |
400*600mm |
Size (as Customized): |
Max:1200*2800mm |
Characteristic: |
Sound Insulation，Good Air Tightness，fireproofing |
Product Name: |
Emergency Exit Double Door |
Type: |
Cleanroom Swing Door |
Door Frame Steel Plate Thickness: |
1.2 Or 1.5mm |
Door Panel Steel Plate Thickness: |
0.8 Or 1.0mm |
Filling Material: |
Paper Honeycomb Or Aluminium Honeycomb |
Window Size: |
540*1810mm |
Size: |
Customized |

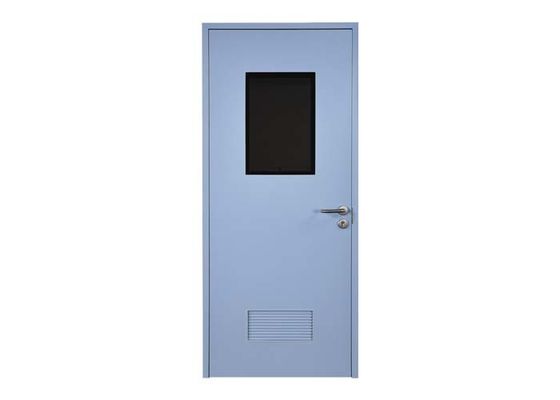

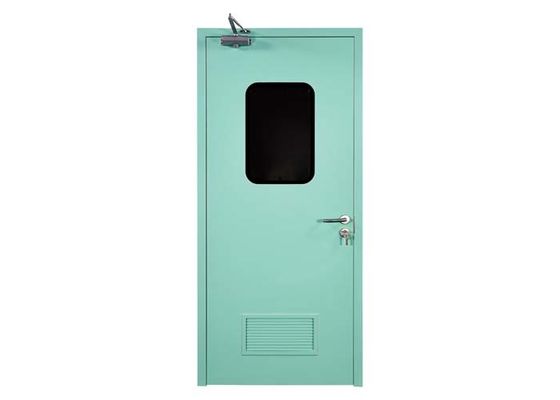

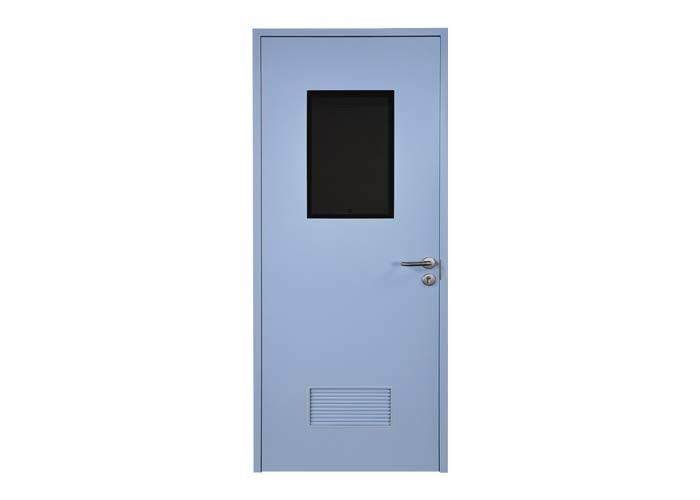

GMP Standard Modular Cleanroom Manul Swing Door Hospital Steel Door
Description:
Clean room steel door is made of environmentally friendly galvanized steel plate, antifouling and environmental protection materials. The surface is made of electrostatic spraying process. It has the characteristics of anti-pollution, green environmental protection, safety, antibacterial and corrosion resistance. The side of the door fan adopts the way of single seam stitching, easy to install, the surface of the door frame has no joint process, good sealing, beautiful, easy to clean and prevent pollution. With nylon handle, high quality hardware, antibacterial electrostatic spraying, reduce the breeding of bacteria, greatly improve the cleanliness of the space inside the medical equipment. It is mainly used in hospitals, ICU wards, clean rooms, food processing plants, pharmaceutical factories and cosmetics factories for sound insulation, heat insulation and clean requirements of the environment.
Parameters:
| Type | Manul single door | Size (as customized) | Max:1200*2800mm |
| Model | HE201 | Color customization | Pink/green/blue/white... |
| Name | Manul Cleanroom steel door | Wall thickness | 50mm-400mm |
| door frame steel plate thickness |
1.2mm; 1.5mm |
Door panel sheet material | Galvanized steel |
| Door panel steel plate thickness |
0.8mm; 1.0mm |
filling | High strength paper honeycomb/Aluminium honeycomb |
| Door panel thickness | 50mm | Window size | 400*600mm |
| Lock | 304 Stainless steel split U-lock | Hinge | 304 Stainless steel |
| Seal |
Door panel with sealing rubber strip Automatic lift dust seal under door |
Maximum number of samples per request(pieces) | 1 |
| Characteristic | Sound insulation,Good air tightness,fireproofing | Sample Pack Description | Bubble wrap+foam, or wooden box |
Product advantage:
Applications:
Widely used in Hospitals, laboratories, pharmaceutical factories, electronics factories, new energy, aerospace, food factories, beverage factories, cosmetics and other purification fields.
Notices:
Colors:

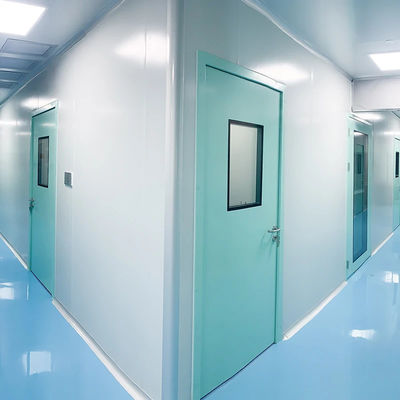

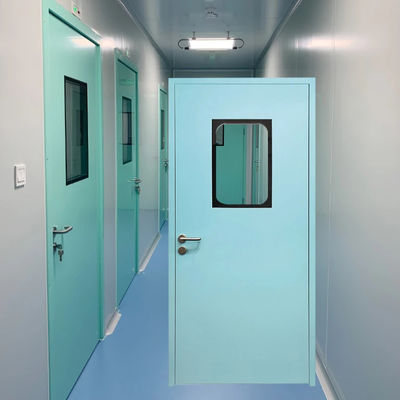

Projcet Photos:
Our Clients:
FAQS:
Q1. Can I have a sample order ?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: 3 days for Sample preparing ,8-10 working days for mass production.
Q3. Do you have any MOQ limit for the order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 7-15 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order?
A: Firstly let us know your detail requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the quotaion and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production.
